TOP 10 DIAL TEST INDICATORS

1. Dial Indicator, SAE, 0.0005 Resolution (half a thousandth), 1" Travel, Accuracy 0.001" per 1", Machined Anodized Aluminum Body, Vertical Lug Back, Dial Test Indicator DI-1”

Large easy to read 2-1/4'' white face with crisp black graduations

1.00" total travel

0.0005" Resolution (half a thousandth)

Machined Anodized Aluminum Body

Accuracy guaranteed to 0.001" per 1"

2. Surface Smoothness Dial Test Indicator - Bi-Directional Lever Arm - 0.03"-0.0005"

Our Part # ALL-52030

Measuring range: 0-0.03", graduation: 0.0005", reading: 0-15-0

Dovetail mount top, back and front. Precision pivot bearing.

Contact point ball diameter: 0.080" Includes: fitted case and two stems - 3/8" & 5/32"

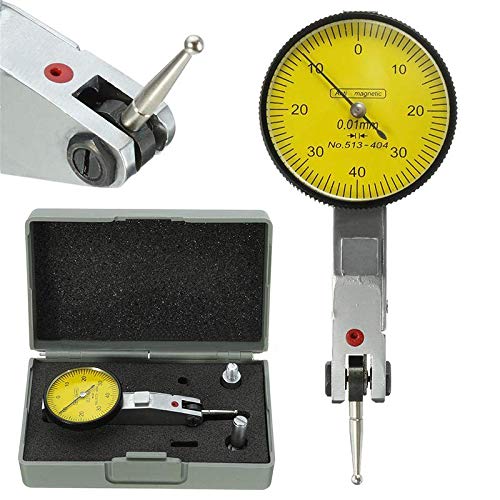

3. Guage Dial Precision Dial Test Indicator .0005 Accessories Set with Case

▶APPLICABLE SPECIFICATION: Dial type and reading: 0-40-0 balanced inch and 0-25-0 balanced metric readings, range: 0-0.8mm, graduations: 0.0005"/0.01mm

▶HIGH QUALITY: using non-clutch structure to achieve automatic rotation of the measurement direction, dovetail mount for mounting the indicator from the top, rear, or front, durable, accurate measurement, with high sensitivity and rapid response capability

▶DIAL INDICATOR ACCURACY: This dial test indicator is designed for measurement during machining, layout and inspection work. The dial has a fine black scale of 0-40-0 balanced inches reading and a red scale of 0.001mm balanced measurement reading

▶DURABLE USE: magnetic pointer and stylus can be used reliably in a magnetic environment, the probe can be 180° rotation, free to adjust the measurement direction, left and right swing-type probe, the knurled bezel rotates 360 degrees, making the reading zero at any position

▶PACKAGE INCLUDED: 1 x Fowler yellow-face dial test indicator, 1 x 3/8" Dovetail clamp, 1 x 5/32" Dovetail clamp, 1 x Molded case

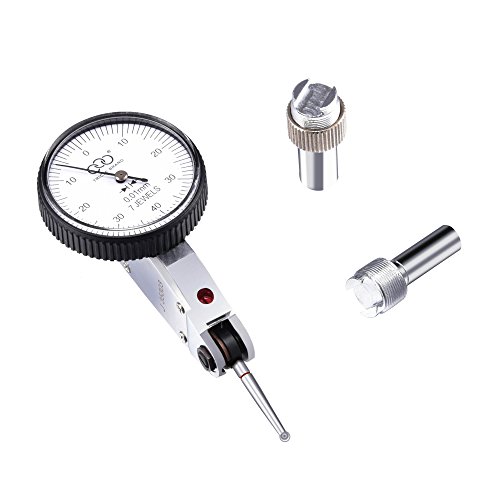

4. Navigator Test Dial Indicator,7 Jewels Bearing,Harden Carbide Probe,0-0.8mm Range,0.01mm Graduation,Metric,Industrial Grade

7 Jewels: SHOCKPROOF Design

Range x Graduation: 0.8 x 0.01mm (0.03"x 0.0004"); Dial Diameter:1-1/2". Metric

Ruby Point: Protected from Magnetic

Carbide Point: Hardest,most Durable

Meet Japanese JIS B7503-1997, AGD standards

5. INSIZE 6296-2 Dial Test Indicator Holder

Supplied with fixing spanner

Length: 5.354 inch

Stem hole diameter: 5/32 inch

Above are the 5 products we think are the best dial test indicators

6. Interapid 312B-2V .060" 0-15-0 1" Dial Vertical Dial Test Indicator

For measurement at 12°. One piece, solid case.

Carbide point diameter: .080". Variety of mounting positions.

Adapter shank diameter: 5/32"

Revolution counter. Jeweled mechanism fitted with ball bearings.

Inclined, easy-to-read dial.

7. Brown & Sharpe 599-7030-40R Ruby Tip Contact Point for Bestest Dial Test Indicator, 0.040" Tip Dia. x 1/2" Length, M1.4 x 0.03 Thread

Contact point for use with Brown & Sharpe Bestest series dial test indicators

Ruby (synthetic sapphire) ball tip for light weight, wear resistance, stability with changes in temperature, suitable for delicate and silicon carbide surfaces, and non-magnetic and non-conductive properties for use in Electrical Discharge Machining (EDM) processes

M1.4x0.3 thread

8. Mitutoyo 513-528T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 0.375" Stem Dia., White Dial, 0-20-0 Reading, 1.3" Dial Dia., 0-0.04" Range, 0.001" Graduation, +/-0.001" Accuracy

Jeweled bearings assure higher sensitivity and accuracy. reversible measuring direction

Two holding bars are supplied (full sets only)

Fully adjustable bezel/dial face

Contact point is adjustable within 220 degree

Bezel is sealed with on o-ring to keep out water/oil

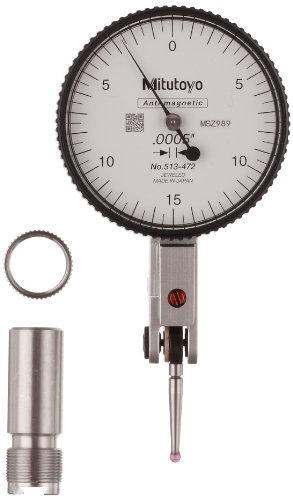

9. Mitutoyo 513-472 Dial Test Indicator, Horizontal Type, Ruby Stylus, 0.375" Stem Dia., White Dial, 0-15-0 Reading, 1.575" Dial Dia., 0-0.03" Range, 0.0005" Graduation

Jeweled bearings

Ruby contact point

Auto-reverse (no clutch lever)

Glare free, scratch resistant crystal

Supplied in fitted plastic case

10. Starrett 711LCSZ Last Word Dial Test Indicator with Attachments, White Dial, 0-15-0 Reading, 0-0.03" Range, 0.0005" Graduation, +/-0.0005" Accuracy

Horizontal-face, inch dial test indicator with hard, chrome-plated, steel ratchet contact point for taking measurements in machining, layout, and inspection work

Balanced dial has a white face with half-yellow shading for accurate reading when used with a mirror or in a bore jig application, and a positive reversing switch for changing reading direction

Swiveling, tubular body can be mounted using a body clamp, friction holder, or shank

Jeweled lever action for smooth operation, and replaceable contact point

Meets or exceeds accuracy and performance requirements of national and international standards, and traceable to the United States National Institutes of Standards and Technology (NIST).

.0005" Grad

.030" Range

Indicator Complete with All Attachments

Ideal for precise measurements in all machining, layout, and inspection work

Smooth, jeweled level action
